4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: 4X2 Truck Mounted Boom Crane Trailer Mounted Crane 4700mm Wheelbase
Brand: Dongfeng
Price: 40000 USD

Brand Name : Dongfeng

Model Number : DFD1120B

Place of Origin : China

MOQ : 1 unit

Price : US$40000-US$45000

Supply Ability : 500unit/month

Delivery Time : 30 days after the deposit

Packaging Details : nude

Truck type : Truck with crane

Crane lifting capacity : 5ton

Horsepower : 180hp

Wheelbase : 4700mm

driving type : 4x2

overall dimension : 8600×2500×3200mm

Contact Now

4X2 high quality truck mouned crane, 5 ton lifting crane truck

Specification:

Truck	Drive mode	4×2
	Chassis	DFD1120B
	Engine	Model	Cummins 180 30
		Type	4-cylinder in line, turbocharging, electrical control common-rail engine
		Max. power(Kw/rpm)	136/2500
		Max. torque(N.m/rpm)	650/1200-1700
		Bore /Stroke(mm)	107×124
		Displacement(ml)	4500
		Type of fuel	Diesel
		Compression ratio	17.3:1
	Dimensions	Overall dimension (mm)	8600×2500×3200
		Wheel base (mm)	4700
		Front/Rear tread(mm)	1880/1860
	Mass	Payload (Kg)	5930
		Curb weight(Kg)	5880
		G.V.W (Kg)	12005
Crane	Crane Weight (Kg)	2120
	Max. Lifting Capacity (Kg)	5000
	Max. Lifting Moment (T.M)	12.5
	Lifting Capacity/Working Radius (Kg/m)	1050/8.50
		1500/6.000
		2940/3.500
	Installation Space (mm)	900
	Rotation Angle º	360

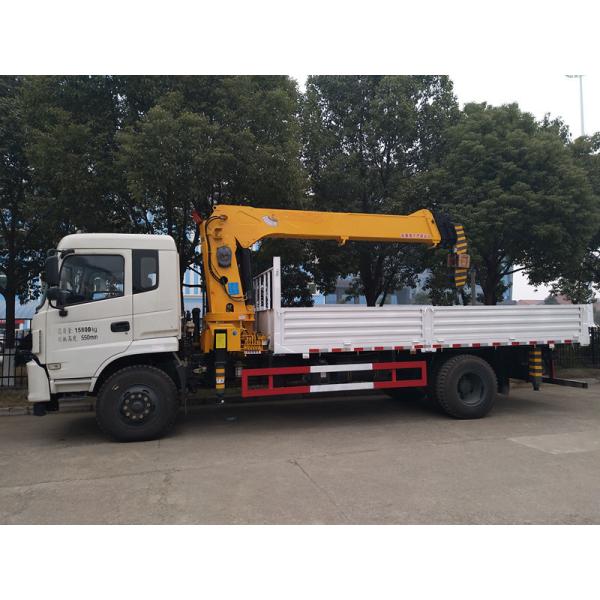

Photos for reference:

4X2 Truck Mounted Boom Crane , Trailer Mounted Crane 4700mm Wheelbase
