| Features: |
|
|
|
|

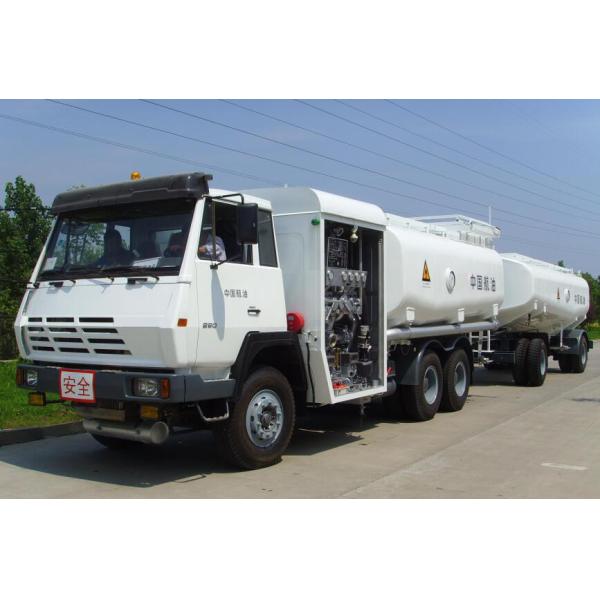

| 1. The aircraft refueling truck with full trailer is equipped with stopping brake interlock, overtaking and signal display, inlet oil pump, flow meter, filter separator, pressure control valve and refueling hose; |
| 2. The reel is coiled automatically by two hydraulic control devices; |
| 3. Double-wedge-shaped tank with variable cross-section facilitates deposition of impurities; |
| 4. It is manufactured with high-quality aluminum-magnesium alloy plate, TIG welding and X-ray detection; |
| 5. A refueling platform is installed on top of tank |
| |
Product model |
C5600YST |
| Completed Vehicle |
Overall dimensions (L×W×H, mm) |
18956×3000×3225 |
| Rated payload (KG) |
40900 |
| Curb weight (KG) |
19600 |
| Maximum total mass (KG) |
60500 |
| Material of oil tank |
Aluminum magnesium alloy |
| Total nominal volume of oil tank |
49000 |
| Accuracy of flow meter |
±0.2% |
| Minimum turning diameter (m) |
22 |
| Maximum speed (Km/h) |
50 |
| Maximum flow of oil pumping of reel hose (L/min) |
250 for single tube; 420 for double-tube |
| Maximum flow of oil pumping of platform hose (L/min) |
300 for single tube; 420 for double-tube |
| Main Parts |
Chassis model |
SINOTRUK STEYR 6×4 Chassis |
| Engine power (horsepower) |
290 |
| Overall dimensions (L×W×H, mm) |
9920×3000×3225 |
| Rated payload (KG) |
18320 |
| Curb weight (KG) |
14040 |
| Maximum total mass (KG) |
32500 |
| Tank capacity |
Geometric volume (L): |
23000 |
| |
Rated volume (L): |
21500 |
| Maximum flow of refueling (L/min) |
1200 for single tube; 2400 for double-tube |
| Maximum flow of bottom loading (L/min) |
1500 |
| Trailer |
Overall dimensions (L×W×H, mm) |
9167×3000×3170 |
| Rated payload (KG) |
22440 |
| Curb weight (KG) |
5560 |
| Maximum total mass (KG) |
28000 |
| Tank capacity |
Geometric volume (L): |
28870 |
| |
Rated volume (L): |
27500 |
| Maximum flow of refueling (L/min) |
1200 for single tube; 2400 for double-tube |
| Maximum flow of bottom loading (L/min) |
1500 |
| Length of 2.5'' reel hose for underwing refueling (m) |
30 |
| Length of 2.5'' platform hose for underwing refueling (m) |
3.5 |
| Fuel filtering performance index of filter separator |
Meet the requirements of API/IP 1581 5th |
| Control of refueling pressure |
Online + end |
| Braking interlock |
YES |
| Deadman control |
Pneumatic/electrical control |
| Production license of civil aviation |
YES |
| High-low level control |
YES |
